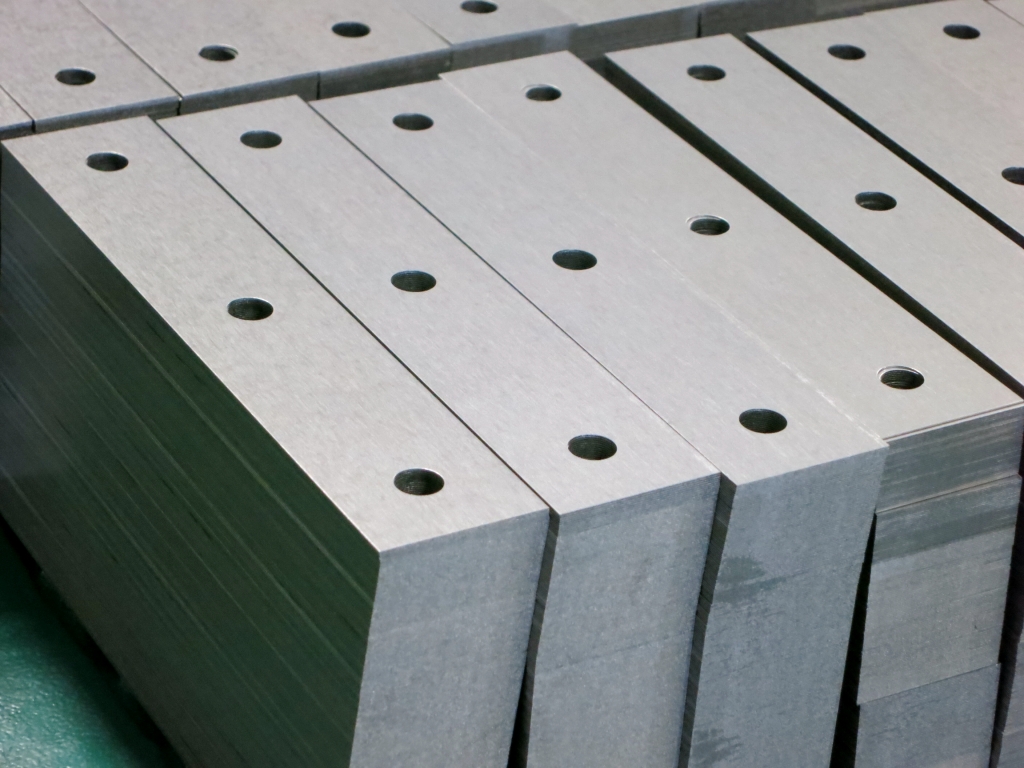

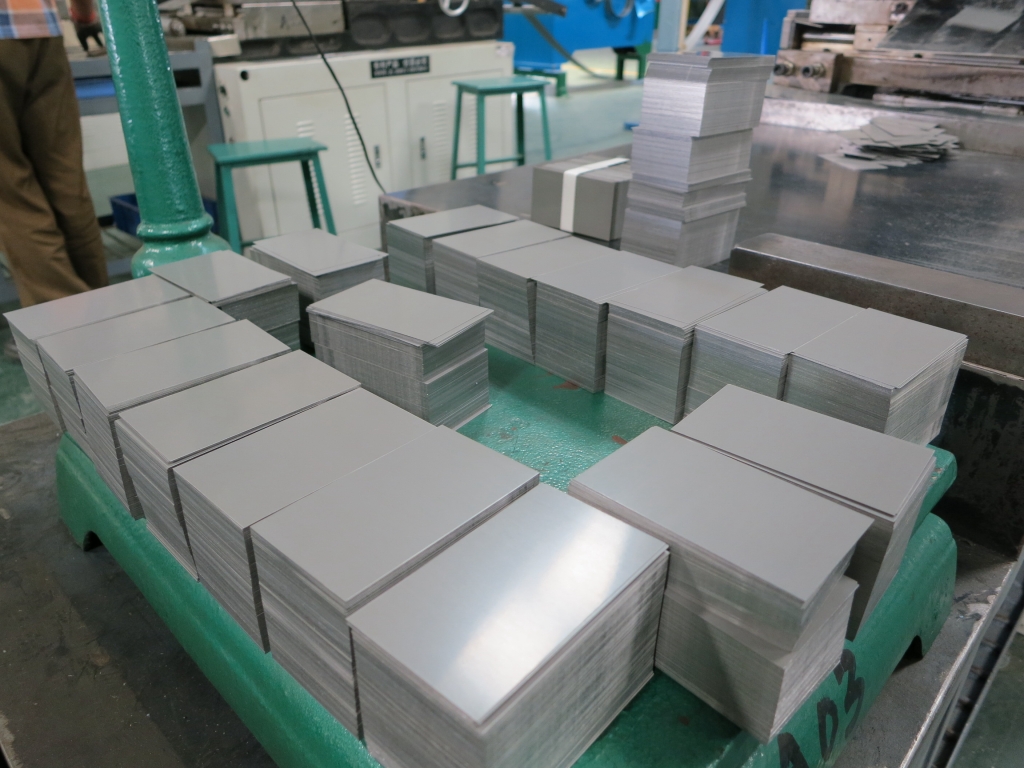

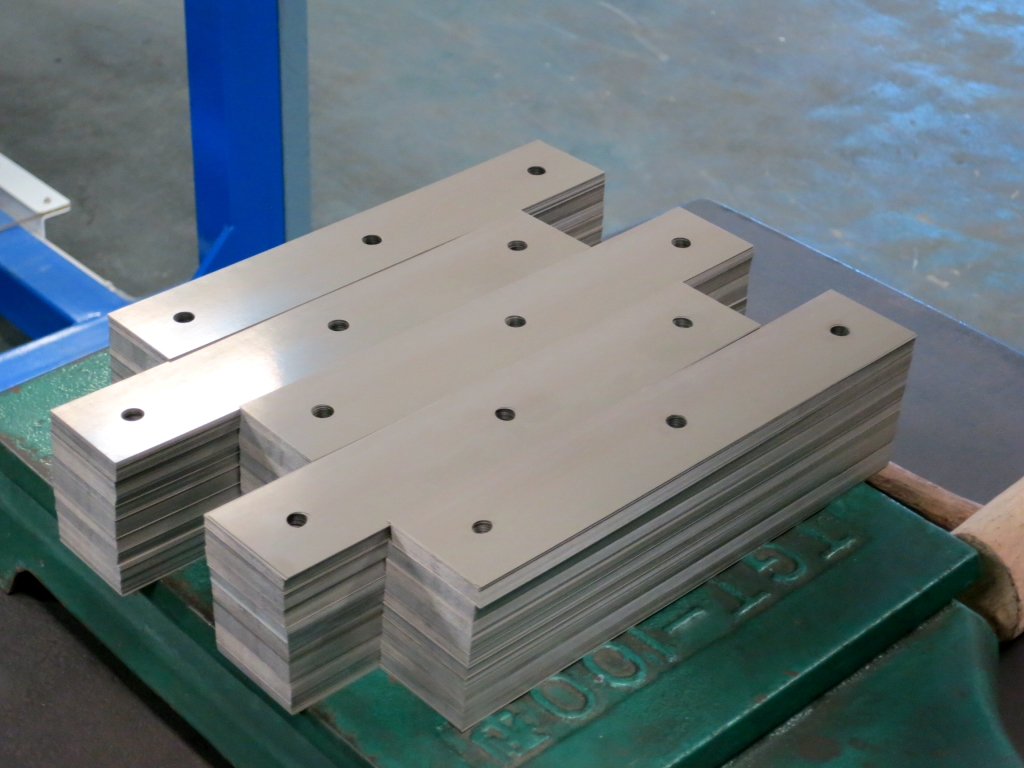

* Strip Laminations * 90° Cut to Length with Auto Hole Punch
High precision strip lamination cutting is our expertise. With experience and trained staff, Manly process both CRGO&CRNO with auto hole punching to ensure the quality match our value customer upmost quality requirement.
|
No. of Machine |
3x auto 90° cutting line with hole punch |
|
Thickness |
0.20mm-0.5mm |
| Width | 25mm-200mm |
| Max Coil Weight | 2 mt |
|
ID |
450-508mm |
|
Line Speed |
60m/min |
| Hole Width | ∅ 8-20mm |
| no. of Hole Punch | Max 11 hole punch in single cutting |
| Width Tolerance | ±0.20mm |
| Burr | ≦0.02mm |
| Available Shape |  |
|
