Non-Grain-Oriented Steel

15CS1200HF

Model：
15CS1200HF - Cold Rolled Non-Oriented Electrical Steel

Features：

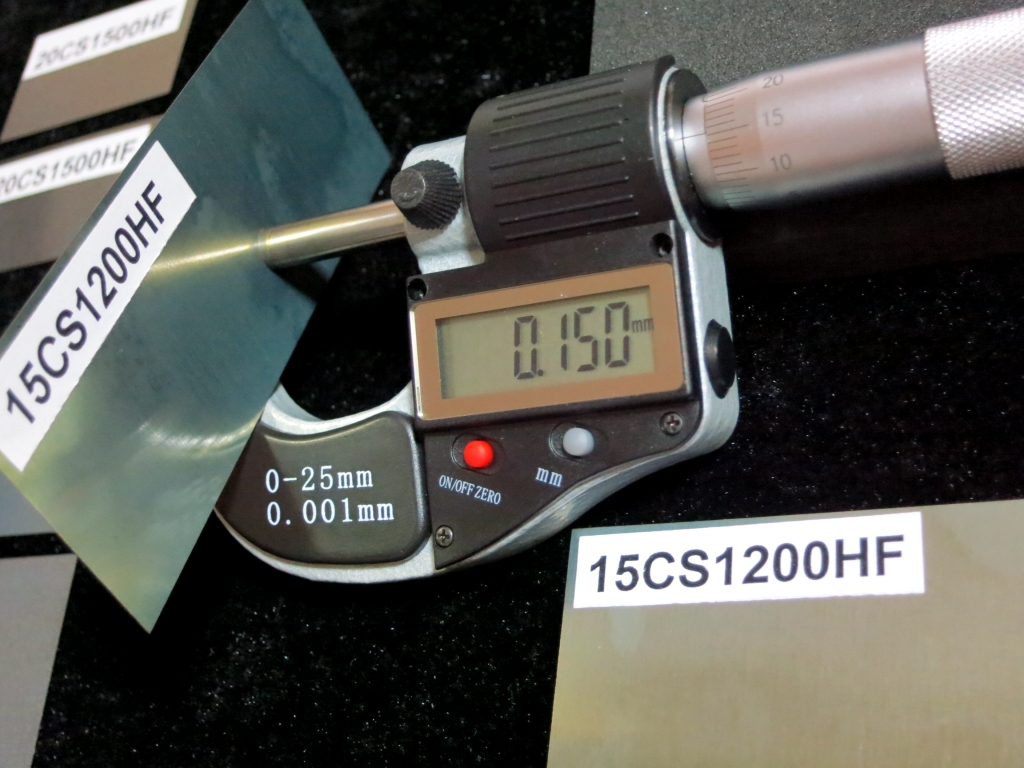

* Thickness: 0.15mm

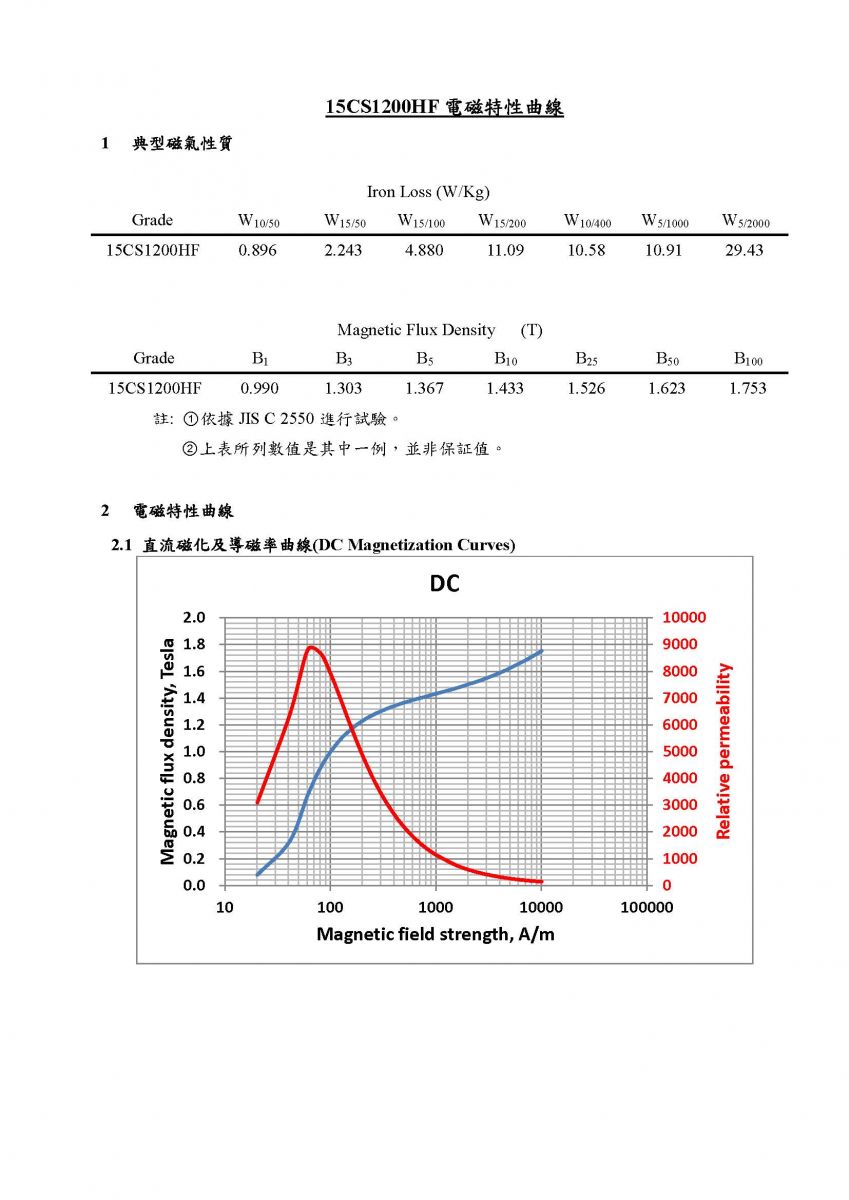

* Iron Loss
            W15/50 = 2.243 W/Kg
           W10/400 = 10.58 W/Kg
Applications:
      Consumer electronics
      Industrial renewable power generation
      Automotives

Introduction
Specification
Video
Customers

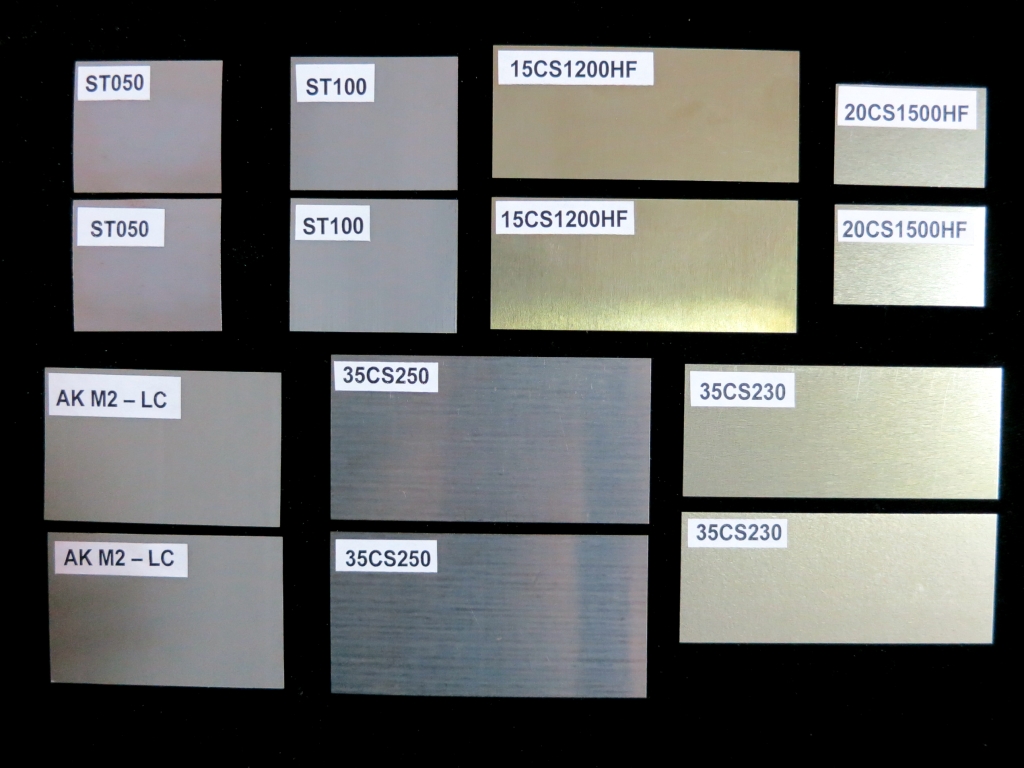

Grade	Type	Thickness (mm)	Density (g/cm2)	Iron Loss W15/50	Iron Loss W10/400
15CS1200HF	CRNGO	0.15	7.65	2.243	10.58
20CS1500HF	CRNGO	0.20	7.65	2.289	12.51
35CS230	CRNGO	0.35	7.65	2.214	17.16
35CS250	CRNGO	0.35	7.65	2.35	18.36
35CS300	CRNGO	0.35	7.65	2.42	18.64
AK M2-LC	CRGO	0.18	7.65	0.646	6.36
GT050	CRGO	0.05	7.60	1.2	6.1
ST100	CRNGO	0.10	7.60	2.7	11.6
