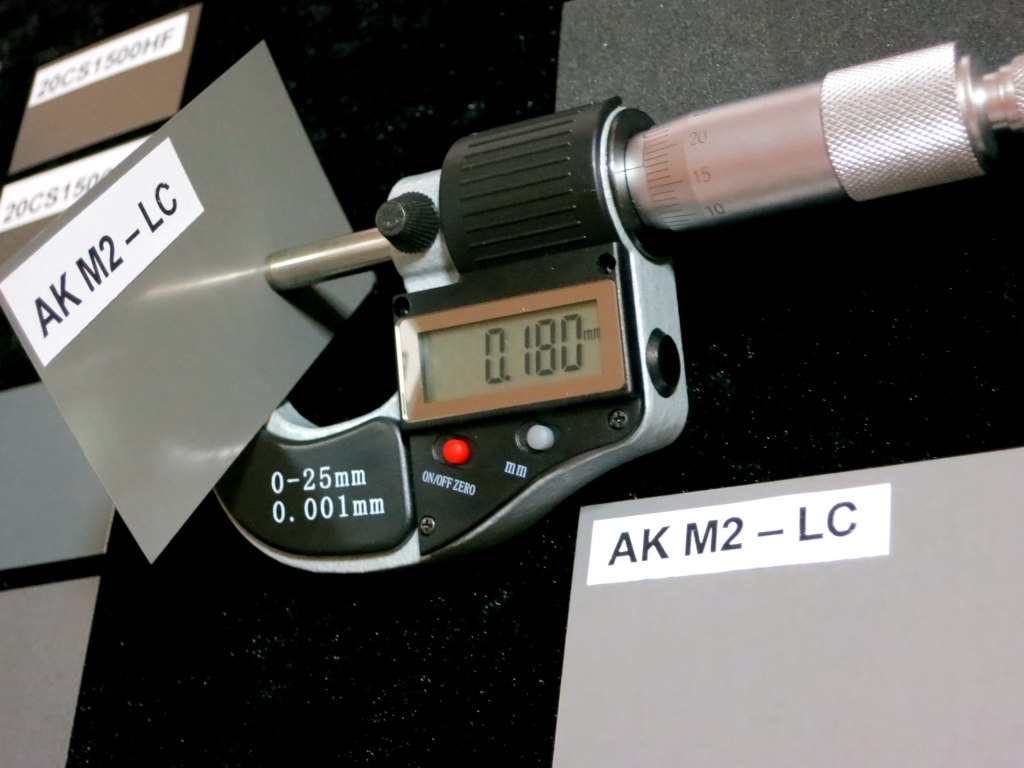

* Thickness: 0.18mm

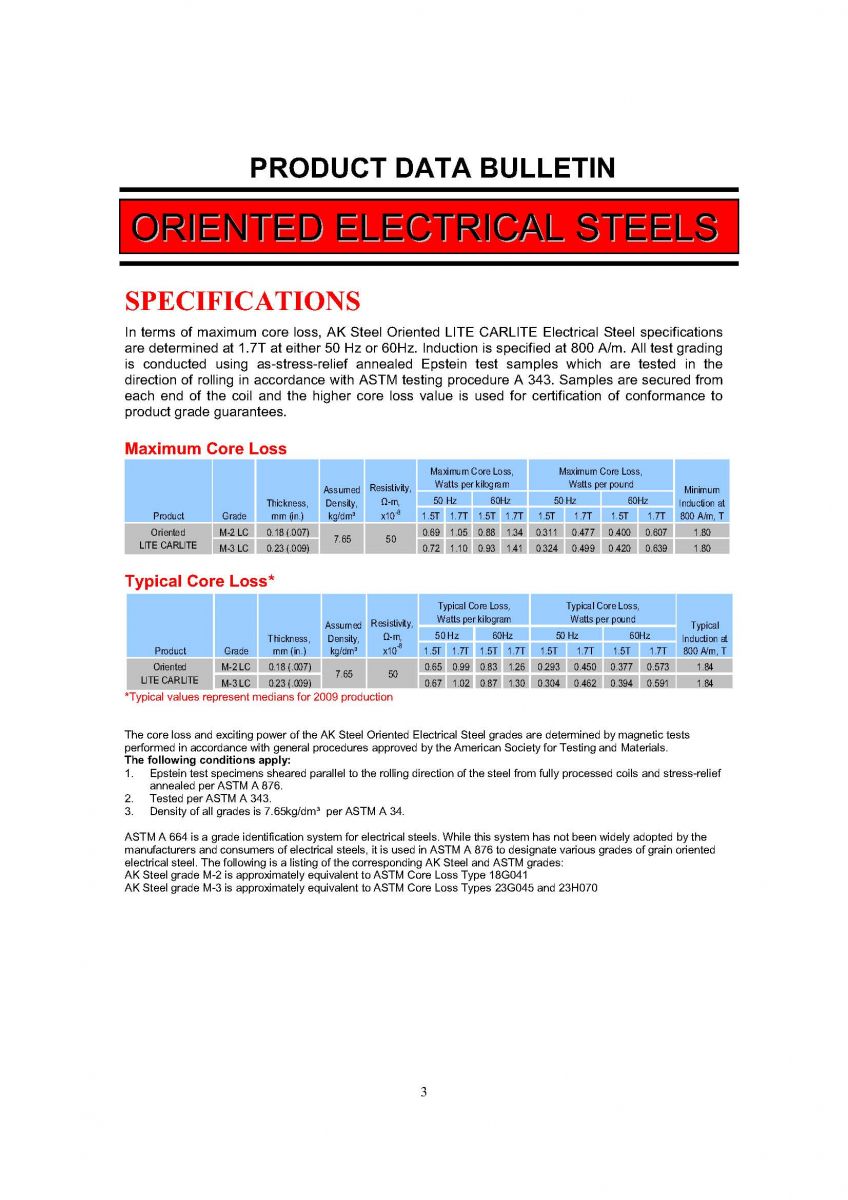

* Iron Loss
W17/50 = 1.007 W/Kg

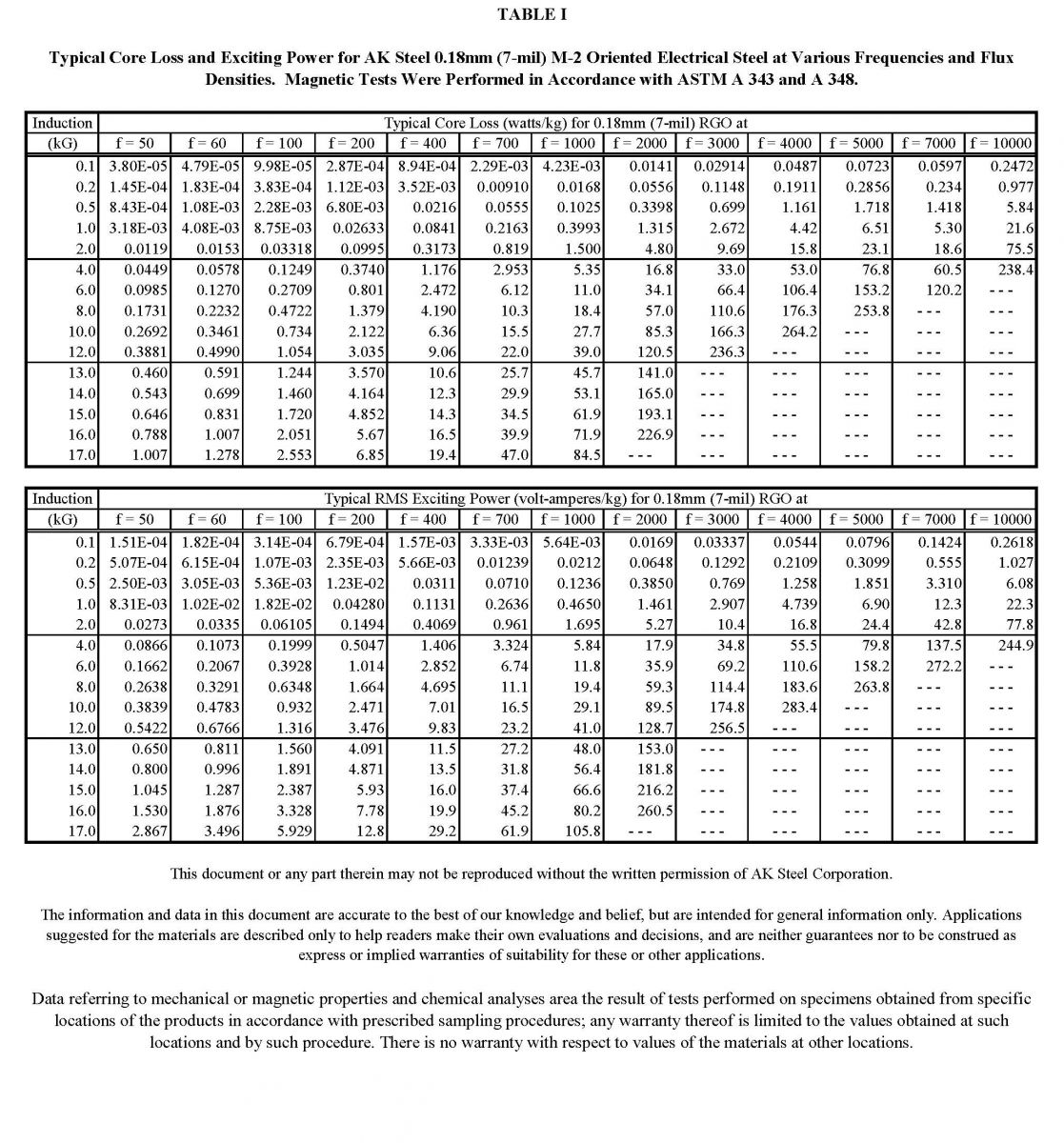

W10/400 = 6.36 W/Kg
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
| Grade |
Type |
Thickness (mm) |
Density
(g/cm2) |
Iron Loss W15/50 |
Iron Loss W10/400 |

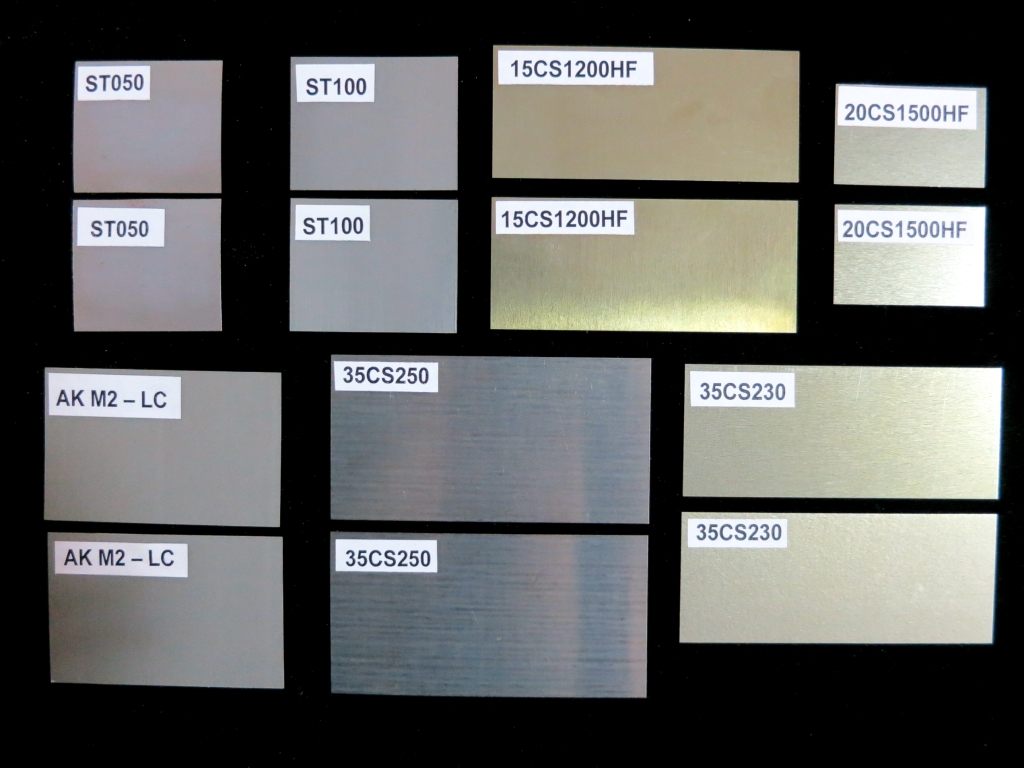

| 15CS1200HF | CRNGO | 0.15 | 7.65 | 2.243 | 10.58 |
| 20CS1500HF | CRNGO | 0.20 | 7.65 | 2.289 | 12.51 |
| 35CS230 | CRNGO | 0.35 | 7.65 | 2.214 | 17.16 |
| 35CS250 | CRNGO | 0.35 | 7.65 | 2.35 | 18.36 |
| 35CS300 | CRNGO | 0.35 | 7.65 | 2.42 | 18.64 |
| AK M2-LC | CRGO | 0.18 | 7.65 | 0.646 | 6.36 |
| GT050 | CRGO | 0.05 | 7.60 | 1.2 | 6.1 |
| ST100 | CRNGO | 0.10 | 7.60 | 2.7 | 11.6 |
