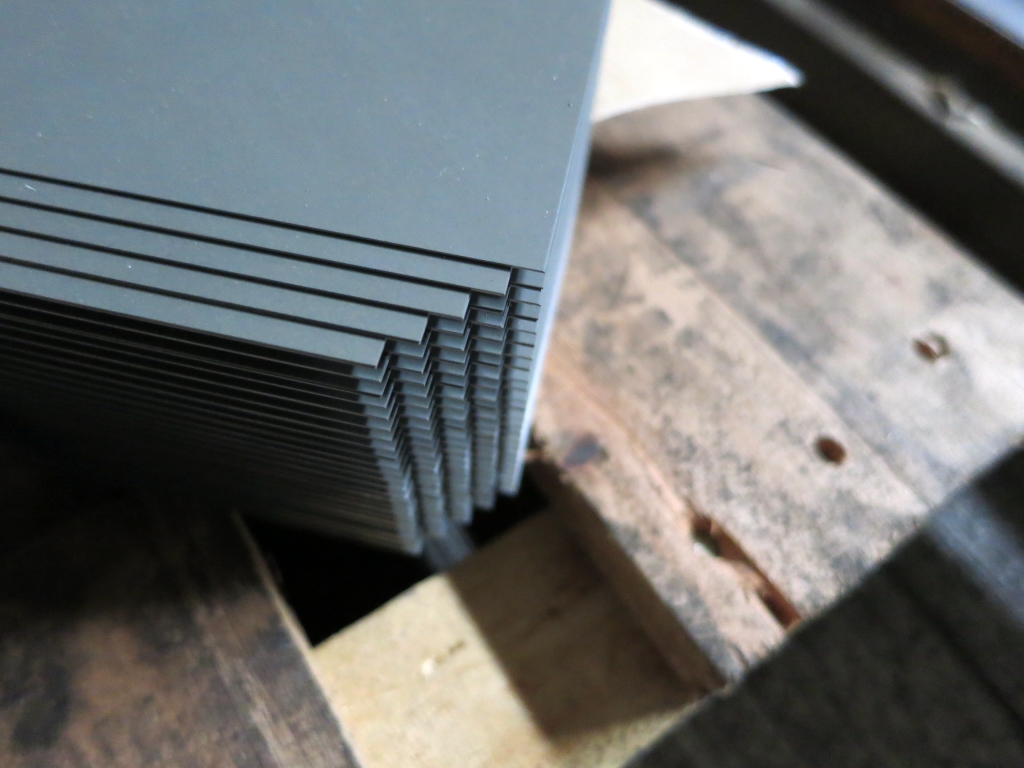

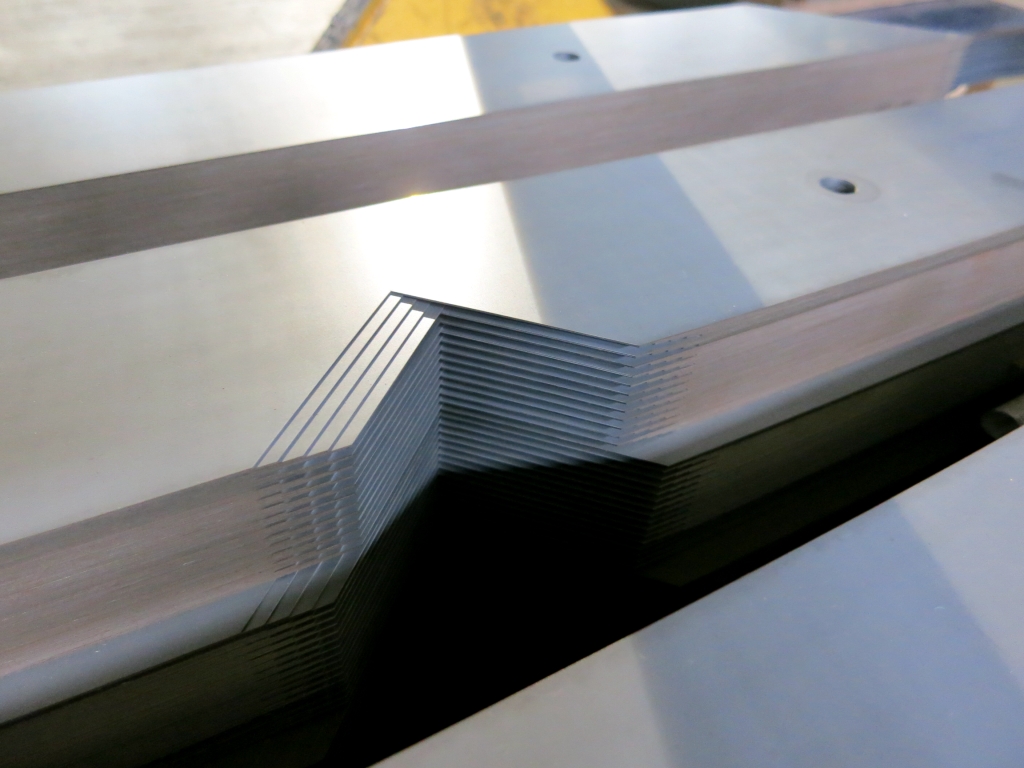

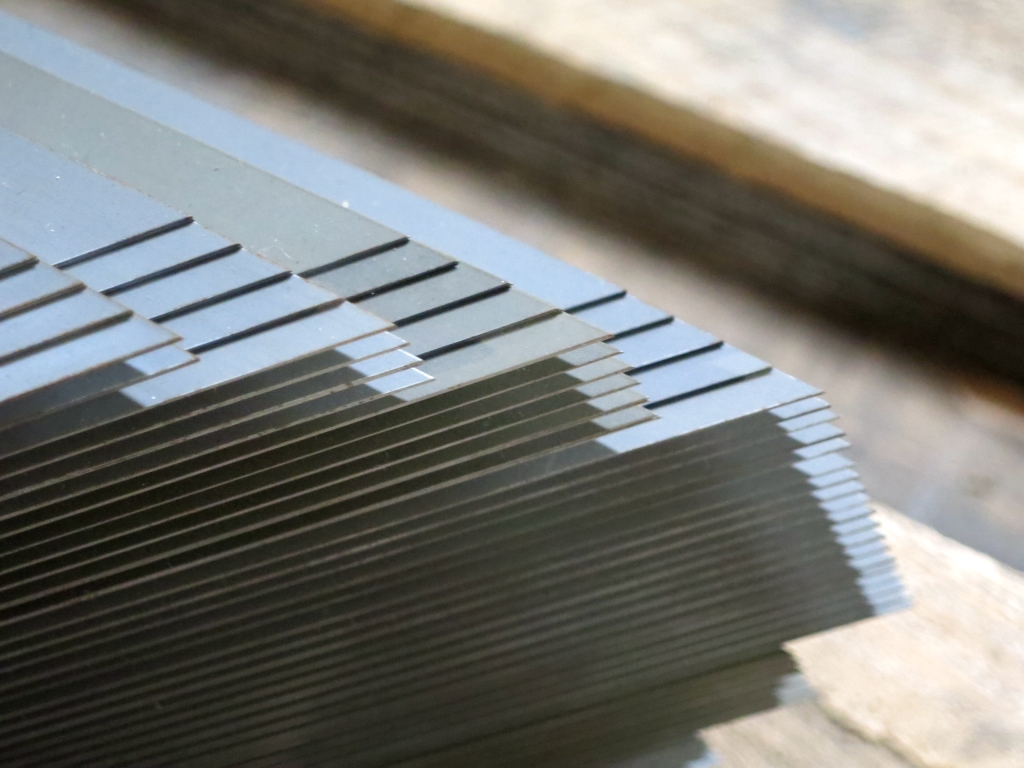

* Cutting Types Vertical Step-Lap (3/5/7 Steps) Hybrid Step-Lap (3/5/7 Steps) Horizontal Step-Lap (3/4/5/6/7 Steps) Basic Design & Other Design * High Precision @ Tolerance +/- 0.10mm

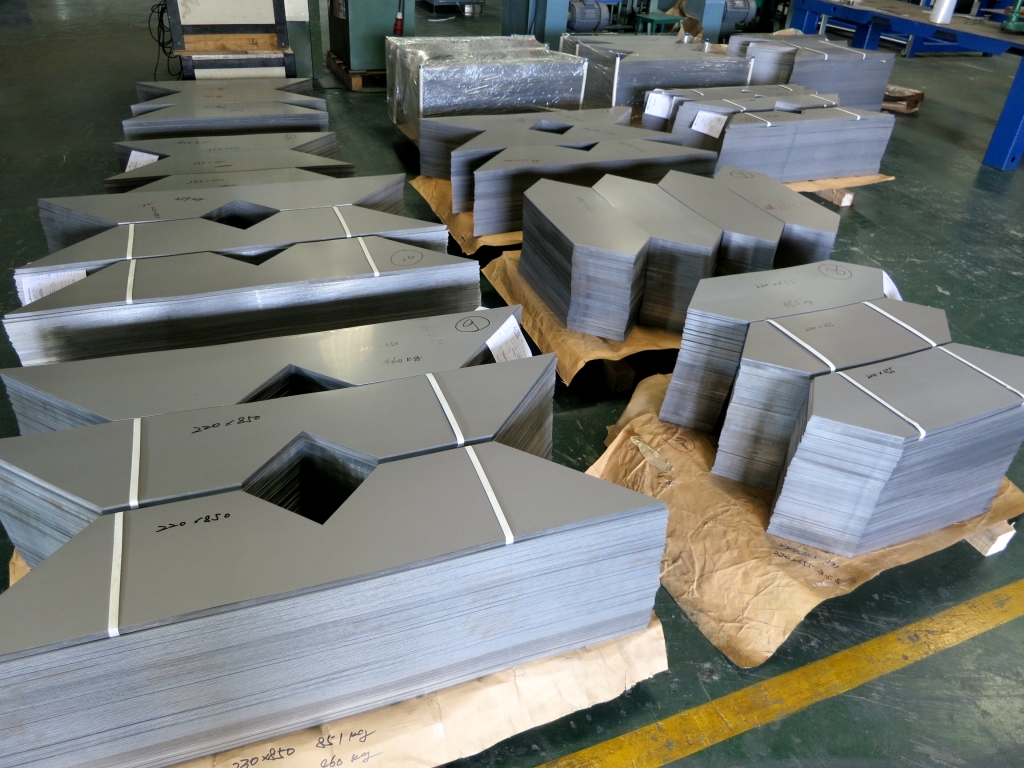

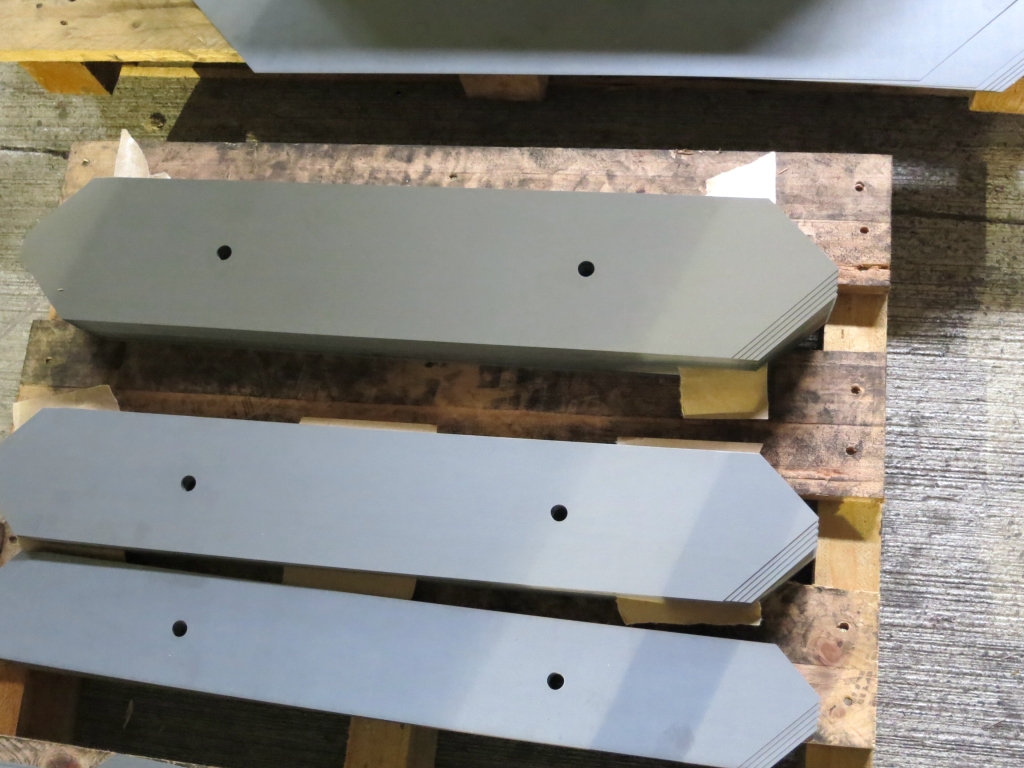

Special software that integrate with machine may also be programmed to cut sequence all the forms required for the carrying out of complete cores for single or three-phase transformers, made with 45° joints or built using Vertical & Horizontal step-lap. Cutting procedures are designed to guarantee the final quality of the product, all machines are fitted with carbide cutter knife, burr are checked as well as the dimension of the cut material.
|
No. of Machine |
2xSteplap 305 Auto cutting line |
|
Thickness |
0.23mm-0.50mm |
| Width | 25-305mm |
| Max Coil Weight | 2 mt |
|
ID |
450-508mm |
|
Line Speed |
120m/min |
| Width Tolerance | ±0.10mm |
| Burr | ≦0.01mm |
| Available Shape |  |
|
No. of Machine |
2xSteplap 305 Auto cutting line |
|
Thickness |
0.23mm-0.50mm |
| Width | 25-305mm |
| Max Coil Weight | 2 mt |
|
ID |
450-508mm |
|
Line Speed |
120m/min |
| Width Tolerance | ±0.10mm |
| Burr | ≦0.01mm |
| Available Shape | |
